B568H-27-03B
110 lbs. heavy duty TANDEM self closing, full extension concealed drawer runner with zinc coated steel profiles. Comes with integrated BLUMOTION. Features concealed roller carriages with permanently lubricated synthetic rollers to create a smooth running action. Comes with Blumatic spring loaded self-closing action which automatically keeps the drawer front from touching the cabinet when closing. Locking devices enable easy drawer insertion and removal. Has a force guided right side and 1/16" tolerance compensating left side. Sold in pairs.
NOTE: For 27 Inches Slide Cabinet Depth Must be minimum 28 Inches.
- Height: Drawer must be at least 3/4" less than the total cabinet opening height.
- Width: For 5/8" thick drawer material, deduct a total of 3/8" from the cabinet total opening width.
- Width: For 1/2" thick drawer material, deduct a total of 5/8" from the cabinet total opening width.
- Drawer Depth: 27 Inches
- Dynamic weight capacity of 110 lbs.
- Static weight capacity of 125 lbs.
- Mounting Screws Sold Separately

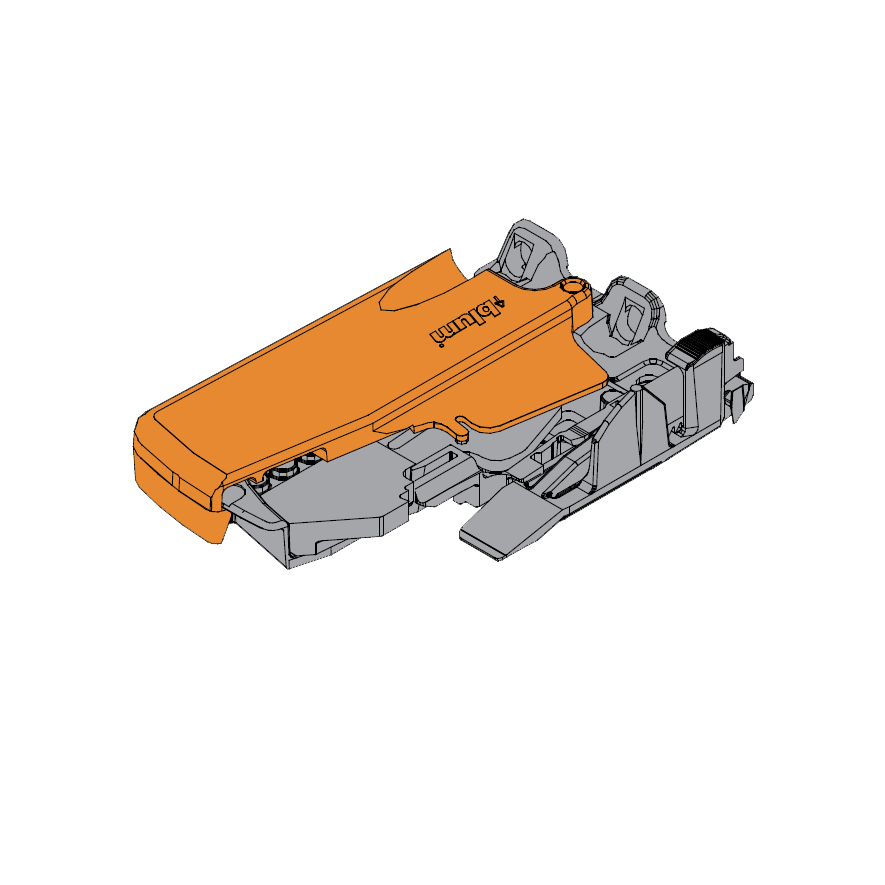

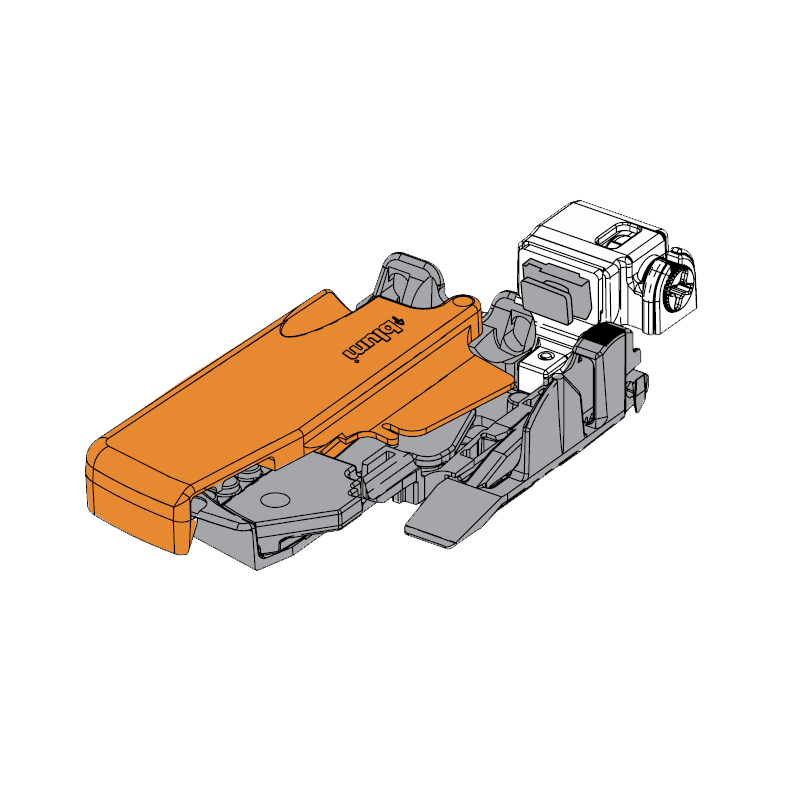

- Front Locking Devices & Rear Mounting Bracket Sold Separately
|
Manufacturer
|
Blum
|
|
Manufacturer Part #
|
568H686B
|
|
Material
|
Steel
|
|
Mounting Type
|
Screw On
|
|
Notes
|
For 5/8" maximum drawer thickness
Full extension Locking devices enable easy drawer insertion & removal Integrated Blumotion |
|
Overall Length
|
27-7/16"
|
|
Product Finish
|
Zinc Coated
|
|
Product Type
|
Drawer Slide: Undermount Soft-Close
|
|
Sold
|
Pair
|
|
Weight Capacity
|
110 lbs
|
General Specifications
